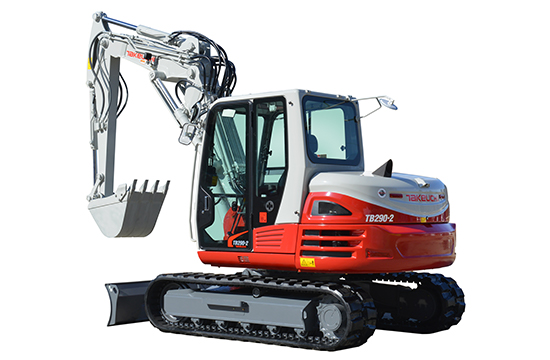

TB290-2 - 8550kg
Takeuchi
En af de største i vor serie 200 af kompakte gravemaskiner er nu opgraderet til TB290-2, ideel til større arbejdspladser. Drevet af en Yanmar 51,6 kW tier5 dieselmotor. Hydraulikken er boostet med 40% og den leverer nu 224L/min på hovedpumpen
Detaljer
Vægt: 8550 kg
Motor: 51,6 kW Tier V Yanmar motor
Brydekraft: 59,1 KN
Grave dybde: 4580 mm
Nyt på denne maskine
Gummi eller stål bånd / Geo grib
Kipbar førerhus modul
Hydraulik: Variabel pumpe P1+2 – P3+4 loadsensing
Servo kontrol
ROPS / OPG førerhus
Powerful Turbocharged Engine – Provides increased horsepower and greater torque for improved performance.
Optimized Design – The rounded design features a contemporary look, and the conventional tail swing delivers excellent stability.
Powerful Dig Forces – Takeuchi’s excellent arm and bucket power provide the perfect combination of power, speed, and versatility at your fingertips. The dual pin position bucket allows even more flexibility to adapt to the job conditions.
Standard 1st and 2nd Auxiliary Hydraulics – Attachment versatility is greatly improved with the standard 1st and 2nd auxiliary hydraulic circuits, and proportional slide switch controls are precise and easy to operate.
Powerful Traction Forces – Automatic step down travel motors deliver powerful traction forces improving performance when backfilling, turning, climbing inclines, and working in difficult terrain and material.
All Steel Construction – Protects components and ensures long term durability.
Wrap Around Counterweight – Protects key engine and hydraulic components from damage while delivering excellent stability.
Heavy Duty Blade – Integrated gusset reinforcements and large blade cylinder give you the strength and durability you expect from the class leader.
Shut-off Valve – Simplify attachment installation and limit the release of hydraulic oil.
Triple Flange Track Rollers – provide increased roller to rail contact improving track retention.
Optional Segmented Rubber Track – Provides an extremely durable alternative to rubber track systems. Performs well on hard surfaces, and Individual track pads are easy to replace if damaged.
